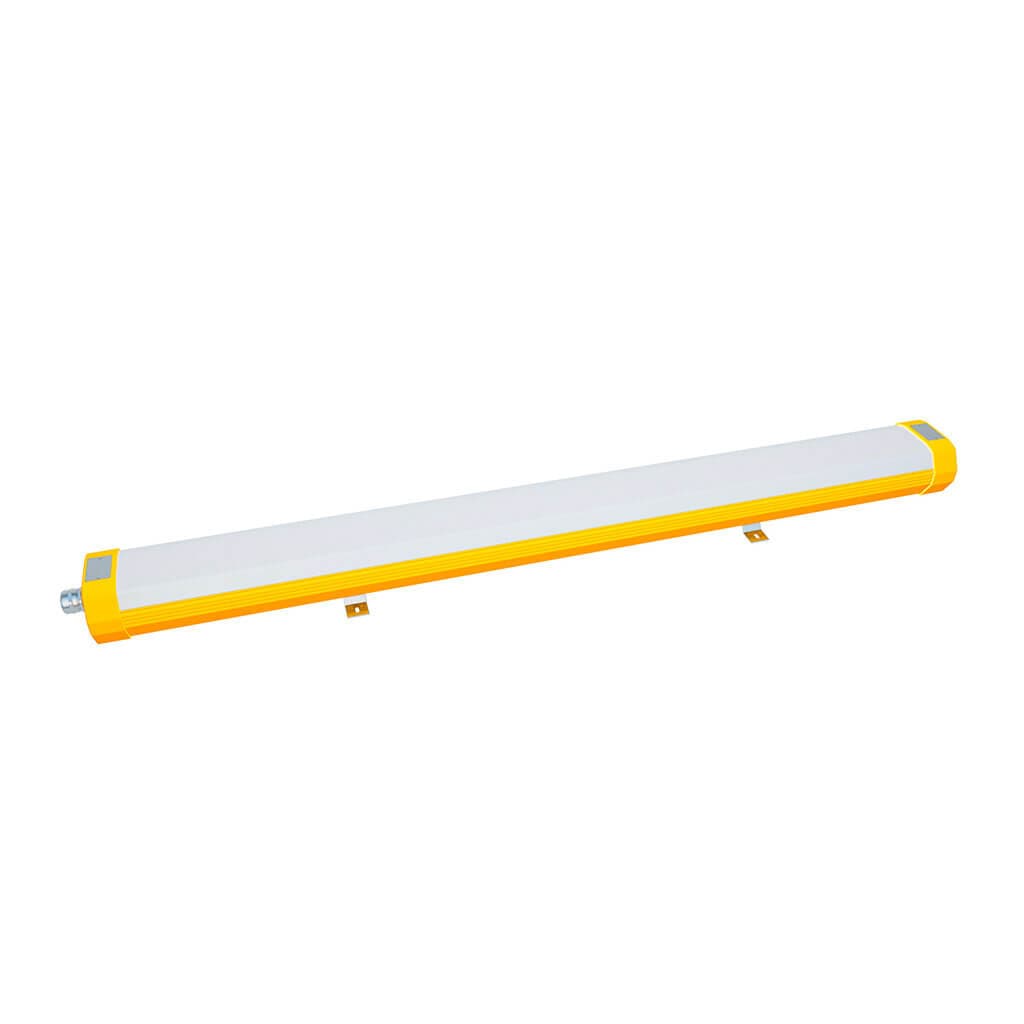

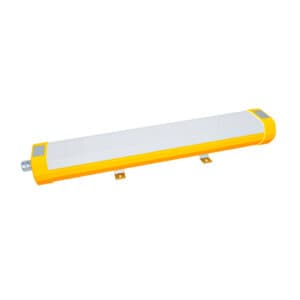

Full Led
Anti-explosion device
Application domains
The product is used in the oil, metallurgical, and other industries at risk of explosive gases and combustible dust.
Advantages
Standard surge protection of 6-12KV.
Possibility of passing through.
Option for single or double passing through.
Optional transparent lens.
The housings are mounted on rear supports for mounting on poles, chains, or a 45-degree wall.
50,000-hour lifespan, environmentally friendly.
Color rendering index superior to HPS, LPS, or MV lamps.
Professional design of light distribution, uniform and comfortable lighting.
Temperature compensation technology for longer lifespan.
Low maintenance costs and over 50% reduced power consumption.
Specifications
Power W
24W / 36W / 50W / 60W / 72W / 80W
Temperature °K
4000°K / 5000°K / 6000°K
Lumens Lm
de 2712 à 9120
Efficiency Lm/W
120 lm/W
Angle °
180°
Dimensions cm
38,5 cm / 68,5 cm / 128,5 cm
General Features & Standards
EN IEC 60079-0:2018
EN 60079-7:2015+A1:2018
EN 60079-31:2014
EN 60079-18:2015+A1:2017
EN 60079-28:2015
IECEx LCIE 20.0018X
Ex eb mb IIC T5/T6 Gb
Ex tb IIIC T80°C Db
Side cover: ADC12.
Joints: monobloc neoprene.
Supports: stainless steel.
Body: aluminum 6063 (copper content less than 0.4% copper), painted yellow.
Lens: polycarbonate.
Low-temperature applications: up to -40℃.
High-temperature applications: up to 50℃.
Best-in-class efficiency
Up to 110 lumens per watt.
Pass-through wiring
Available versions
Dali
Lighting system adapted to each sector
