Sustainably maintain the proper functioning of your devices with our filtering cells.

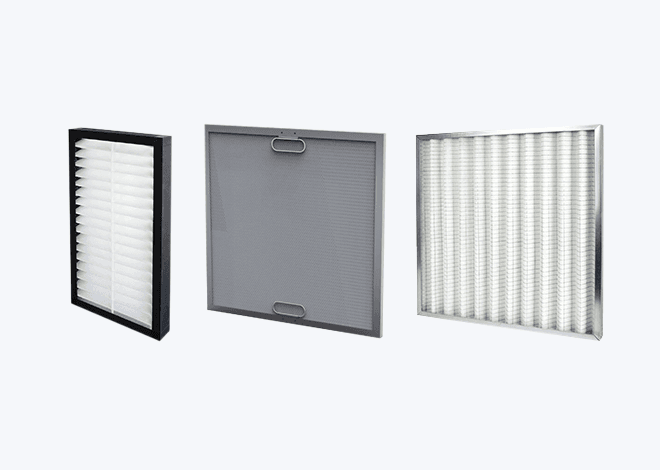

Filtering cells

With Deltrian filtering cells, you have an effective fine particle filtration system. You can use our products with your heating systems, air conditioners, or mechanical ventilation. As true first lines of defense, our filtering cells can serve as coarse filters to preserve your fine particle filters from the largest dust particles.

cellule-filtrante-100-2

Cellule filtrante-100

asset-30-2

Asset 30

Discover the composition and benefits of our products
The retention capacity of our filtering cells is due to their large filtration surface. Waterproof, they offer suitable protection for your air and thermal comfort systems against coarse particles. After use, waste is limited as they can be incinerated.

The range

At Deltrian, we are committed to providing you with filtering cells tailored to your needs and a fully personalized service.

Our Services

Through a study of your air conditioning, heating, or ventilation system, we provide you with the most suitable advice for your situation to choose the right filtering cells.

Studies and advice

Because the placement of filtering cells is crucial to protecting more sensitive air filter systems, we help you place our products within your structure.

Product placement

Our experts are available to answer all your questions.

As the head of the Filtration business unit, my goal is to grow our market share with both existing and new clients. Our product applications range from OEM air treatment unit manufacturers to facility management companies, as well as the automotive, oil and gas, pharmaceutical, nuclear and specialty products industries.

Wannes

As the Filtration BU Manager, it is my responsibility to align the sales team with operational management.

Wannes Van Herck

Airports

Commercial and public buildings

Data Centers

Commercial Centers

Schools and Universities

Warehouses and Distribution Centers

Hospitals

General Industry

Food Industry

Pharmaceutical Industry

Lab and Biosafety

Restaurants

Hotels

<ul>
<li>100% incinerable</li>
<li>High retention capacity thanks to the addition of a non-volatile and odorless viscose binder</li>
<li>Lightweight, rigid and compactable filter</li>
<li>Moisture resistant cardboard</li>
<li>Grid secured to frame, glued to the media</li>
<li>Wide range of standard dimensions, non-standard dimensions on request</li>
<li>Tested for food contact</li>
<li>According to CE 1935/2004</li>
</ul>

General Characteristics

fc-carton-2-3

FC Carton

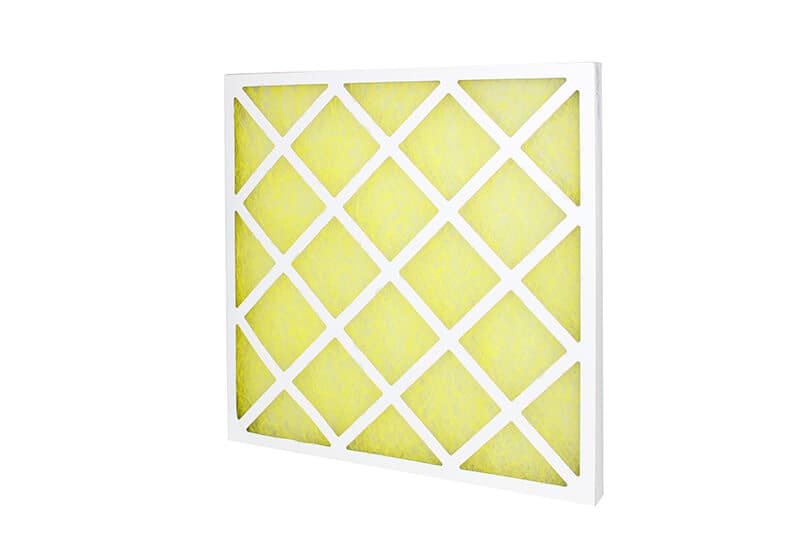

Lightweight, rigid and compactable, the FC Cardboard filter cells are designed for paint booths and air recovery in hospitals.

FC Cardboard

<ul>
<li>M1 media fire classification on demand</li>
<li>Galvanized upstream/downstream mesh</li>
<li>Available in thicknesses of 10 to 47 mm</li>
<li>Available in rechargeable version</li>
<li>Tested for food contact according to CE 1935/2004</li>
</ul>

fc-galva-2

FC-Galva

The Galvanized FC filtering cells are designed to perform a coarse pre-filtration upstream of air treatment systems.

FC Galva

Thermal screen near hot batteries.
<ul>
<li>Droplet separator on air treatment units</li>
<li>Rigid cells with reinforcements on long lengths</li>
<li>Superposition of layers of metal mesh</li>
<li>Available with evacuation holes at an angle, handling grip</li>
</ul>

fcm-galva-2-2

FCM GALVA

FCM filtering cells are specially designed to filter grease or oil mist from kitchen hoods.

Automobile

<ul>
<li>Rigid cells with reinforcement of pleat support on long lengths</li>
<li>Improved sealing thanks to dynamic lut at the bottom of the frame</li>
<li>Lightweight, rigid and collapsible filter</li>
<li>Moisture-resistant cardboard</li>
<li>Grid fixed to the frame, glued to the Media. Large range of standard sizes, custom sizes available on request</li>
<li>100% incinerable</li>
<li>Tested for food contact according to CE 1935/2004</li>
</ul>

fz-carton-2

FZ-Carton

Lightweight and collapsible, the FZ Carton SC & ES filter is also more airtight thanks to its dynamic lut at the bottom of the frame.

FZ Carton SC & ES

Gas Turbines

<ul>
<li>Filtration surface adapted to your needs</li>
<li>Thick synthetic media with high retention power, pleated between 2 rigid grids</li>
<li>Available in rechargeable FZGA R version</li>
<li>Media fire rating M1 on request</li>
<li>Tested for food contact according to CE 1935/2004</li>
</ul>

fz-galva-2

FZ-Galva

The standard version FZGA pleated media between 2 grids ensures superior dust retention compared to the cotton-synthetic mix.

FZ Galva

<ul>
<li>High filtration surface</li>
<li>Suitable for flows up to 5000 m³/h</li>
<li>Thick synthetic media with high retention power that is 100% incinerable</li>
<li>Tested for food contact according to CE 1935/2004</li>
</ul>

fz_ss-2

FZ_SS

Ideal filter for pre-filtration in GAS TURBINE applications. It can be suitable for flows up to 5000 m³/h.

FZ PVC

<ul>
<li>High filtration surface</li>
<li>Lightweight, rigid, and foldable filter</li>
<li>100% incinerable</li>
<li>Highly resistant to humidity</li>
<li>Wide range of standard and non-standard dimensions available</li>
<li>Tested for food contact according to CE 1935/2004</li>
</ul>

fzss-plus-2

FZSS-PLUS

This filter is highly resistant to humidity. Its stabilizing strip provides mechanical rigidity and allows for optimal pleat opening.

FZ SS - SC et ES

<ul>
<li>Robust and neat execution</li>
<li>Manufactured in all dimensions upon request</li>
<li>M1 fire classification of the media upon request</li>
<li>Validated by major fan-coil manufacturers</li>
<li>Tested for food contact according to CE 1935/2004</li>
</ul>

polyfil-2

Polyfil

Polyfil filtering cells are manufactured in all dimensions. They are often used for electrical cabinets.

Filtering cells.
