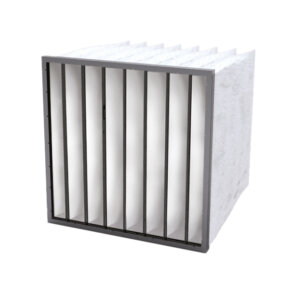

FP50

Illustration
Illustration
Application

Filtration for air handling units equipped with a pre-filter upstream and in air conditioning cabinets.

Application areas

  • Compact and economical
  • Large filtration surface
  • High efficiency
  • Tested for food contact according to CE 1935/2004
Certificates

General Characteristics

Filtration class according to ISO16890: 2016
Media: thick synthetic with increasing density
Final pressure drop according to EN 13053: initial pressure drop + 50 Pa or initial pressure drop x3 (whichever is smaller).
Maximum continuous service temperature: 80°C
Relative humidity: 100% RH
Contact our expert

  • FP50

    Illustration variation

  • ISO COARSE 70% ISO 16890 - (M5)

    • FP50-6/635/08

    • Base A (mm)

      592

    • Height B (mm)

      592

    • Depth C (mm)

      635

    • Pockets

      8

    • Surface (m2)

      6

    • Airflow (m3/h)/Delta P (Pa)

      3400 / 35

    • FP50-5/635/06

    • Base A (mm)

      490

    • Height B (mm)

      592

    • Depth C (mm)

      635

    • Pockets

      6

    • Surface (m2)

      4,5

    • Airflow (m3/h)/Delta P (Pa)

      2800 / 35

    • FP50-3/635/04

    • Base A (mm)

      287

    • Height B (mm)

      592

    • Depth C (mm)

      635

    • Pockets

      4

    • Surface (m2)

      3

    • Airflow (m3/h)/Delta P (Pa)

      1700 / 35

    • FP50-6/600/06

    • Base A (mm)

      592

    • Height B (mm)

      592

    • Depth C (mm)

      600

    • Pockets

      6

    • Surface (m2)

      4,3

    • Airflow (m3/h)/Delta P (Pa)

      3400 / 40

    • FP50-5/600/05

    • Base A (mm)

      490

    • Height B (mm)

      592

    • Depth C (mm)

      600

    • Pockets

      5

    • Surface (m2)

      3,6

    • Airflow (m3/h)/Delta P (Pa)

      2800 / 40

    • FP50-3/600/03

    • Base A (mm)

      287

    • Height B (mm)

      592

    • Depth C (mm)

      600

    • Pockets

      3

    • Surface (m2)

      2,3

    • Airflow (m3/h)/Delta P (Pa)

      1700 / 40

    • FP50-6/500/06

    • Base A (mm)

      592

    • Height B (mm)

      592

    • Depth C (mm)

      500

    • Pockets

      6

    • Surface (m2)

      3,6

    • Airflow (m3/h)/Delta P (Pa)

      3400 / 45

    • FP50-5/500/05

    • Base A (mm)

      490

    • Height B (mm)

      592

    • Depth C (mm)

      500

    • Pockets

      5

    • Surface (m2)

      3

    • Airflow (m3/h)/Delta P (Pa)

      2800 / 45

    • FP50-3/500/03

    • Base A (mm)

      287

    • Height B (mm)

      592

    • Depth C (mm)

      500

    • Pockets

      3

    • Surface (m2)

      1,8

    • Airflow (m3/h)/Delta P (Pa)

      1700 / 45

    • FP50-6/360/06

    • Base A (mm)

      592

    • Height B (mm)

      592

    • Depth C (mm)

      360

    • Pockets

      6

    • Surface (m2)

      2,6

    • Airflow (m3/h)/Delta P (Pa)

      3400 / 43

    • FP50-5/360/05

    • Base A (mm)

      490

    • Height B (mm)

      592

    • Depth C (mm)

      360

    • Pockets

      5

    • Surface (m2)

      2,1

    • Airflow (m3/h)/Delta P (Pa)

      2800 / 43

    • FP50-3/360/03

    • Base A (mm)

      287

    • Height B (mm)

      592

    • Depth C (mm)

      360

    • Pockets

      3

    • Surface (m2)

      1,3

    • Airflow (m3/h)/Delta P (Pa)

      1700 / 43

* Energy consumption, kWh/year: calculated according to Eurovent Guideline 4/21-2018 | ** Energy class: according to Eurovent RS4/C/001-2019 | *** Energy class: according to Eurovent RS4/C/001-2015
