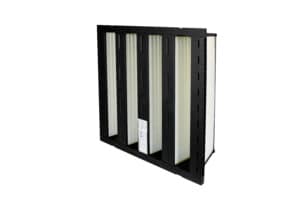

RPV ES

Illustration
Illustration
Application

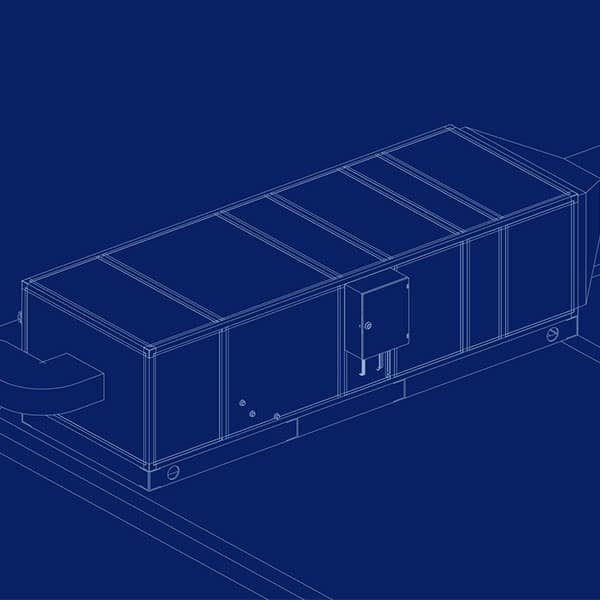

Filtration for air handling units.

Application areas

  • Compact and economical
  • Large filtration surface
  • High efficiency
  • Tested for food contact in accordance with EC 1935/2004
  • Certified inert to microbial growth (ISO 846-VDI 6022)
  • Energy Saving Application
Certificates

General characteristics

Filtration class according to ISO16890: 2016
Media: glass-fibre mini-ply paper
Frame: polystyrene
Lining: polyurethane
Separators: hot-melt wire
Final pressure drop according to EN 13053: initial pressure drop + 100 Pa or initial pressure drop x3 (whichever is smaller).
Recommended final ECO pressure drop: 250 Pa
Maximum continuous operating temperature: 70°C
Relative humidity: 100% RH
Contact our expert
  • RPV ES

    Illustration variation
  • ePM1 60% ISO 16890 - (F7)

    • RPV85-6 ES

    • Base A (mm)

      592

    • Height B (mm)

      592

    • Depth C (mm)

      292

    • Surface (m2)

      20

    • Airflow (m3/h)/Delta P (Pa)

      3400 / 68

    • Energy consumption (kWh/year)*

      836

    • Energy class**

      A+

    • RPV85-5 ES

    • Base A (mm)

      592

    • Height B (mm)

      490

    • Depth C (mm)

      292

    • Surface (m2)

      16

    • Airflow (m3/h)/Delta P (Pa)

      2800 / 68

    • Energy consumption (kWh/year)*

      -

    • Energy class**

      -

    • RPV85-3 ES

    • Base A (mm)

      592

    • Height B (mm)

      287

    • Depth C (mm)

      292

    • Surface (m2)

      10

    • Airflow (m3/h)/Delta P (Pa)

      1700 / 68

    • Energy consumption (kWh/year)*

      -

    • Energy class**

      -

  • ePM1 70% ISO 16890 - (F8)

    • RPV95-6 ES

    • Base A (mm)

      592

    • Height B (mm)

      592

    • Depth C (mm)

      292

    • Surface (m2)

      20

    • Airflow (m3/h)/Delta P (Pa)

      3400 / 83

    • Energy consumption (kWh/year)*

      1058

    • Energy class**

      A

    • RPV95-5 ES

    • Base A (mm)

      592

    • Height B (mm)

      490

    • Depth C (mm)

      292

    • Surface (m2)

      16

    • Airflow (m3/h)/Delta P (Pa)

      2800 / 83

    • Energy consumption (kWh/year)*

      -

    • Energy class**

      -

    • RPV95-3 ES

    • Base A (mm)

      592

    • Height B (mm)

      287

    • Depth C (mm)

      292

    • Surface (m2)

      10

    • Airflow (m3/h)/Delta P (Pa)

      1700 / 83

    • Energy consumption (kWh/year)*

      -

    • Energy class**

      -

  • ePM1 80% ISO 16890 - (F9)

    • RPV98-6 ES

    • Base A (mm)

      592

    • Height B (mm)

      592

    • Depth C (mm)

      292

    • Surface (m2)

      20

    • Airflow (m3/h)/Delta P (Pa)

      3400 / 92

    • Energy consumption (kWh/year)*

      1170

    • Energy class**

      A

    • RPV98-5 ES

    • Base A (mm)

      592

    • Height B (mm)

      490

    • Depth C (mm)

      292

    • Surface (m2)

      16

    • Airflow (m3/h)/Delta P (Pa)

      2800 / 92

    • Energy consumption (kWh/year)*

      -

    • Energy class**

      -

    • RPV98-3 ES

    • Base A (mm)

      592

    • Height B (mm)

      287

    • Depth C (mm)

      292

    • Surface (m2)

      10

    • Airflow (m3/h)/Delta P (Pa)

      1700 / 92

    • Energy consumption (kWh/year)*

      -

    • Energy class**

      -

* Energy consumption, kWh/year: calculated according to Eurovent Guideline 4/21-2018 | ** Energy class: according to Eurovent RS4/C/001-2019 | *** Energy class: according to Eurovent RS4/C/001-2015
