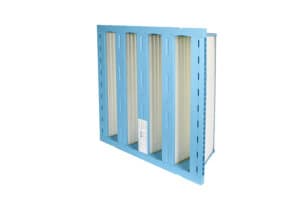

RPV SC

Illustration
Illustration
Application

Filtration for air treatment centers equipped with upstream pre-filtration and preparatory filtration in "CLEANROOM" applications.

Application areas

  • Compact and economical
  • Large filtration surface
  • High efficiency
  • Tested for food contact according to CE 1935/2004
  • Certified inert to microbial development (ISO 846-VDI 6022)
Certificates

General Characteristics

Filtration class EN779:2012: M6-F9
Media: mini-pleated fiberglass paper
Frame: polystyrene
Lut: polyurethane
Separators: hot-melt wire
Final pressure drop according to EN 13053: initial pressure drop + 100 Pa or initial pressure drop x3 (whichever is smaller).
Recommended ECO final pressure drop: 250 Pa
Maximum continuous service temperature: 70°C
Relative humidity: 100%
Contact our expert

  • RPV SC

    Illustration variation

  • ePM10 70% ISO 16890 - (M6)

    • RPV65-6SC

    • Base A (mm)

      592

    • Height B (mm)

      592

    • Depth C (mm)

      292

    • Surface (m2)

      18

    • Airflow (m3/h)/Delta P (Pa)

      3400 / 69

    • Energy consumption (kWh/year)*

      945

    • Energy class**

      D

    • RPV65-5SC

    • Base A (mm)

      592

    • Height B (mm)

      490

    • Depth C (mm)

      292

    • Surface (m2)

      15

    • Airflow (m3/h)/Delta P (Pa)

      2800 / 69

    • Energy consumption (kWh/year)*

      -

    • Energy class**

      -

    • RPV65-3SC

    • Base A (mm)

      592

    • Height B (mm)

      287

    • Depth C (mm)

      292

    • Surface (m2)

      9

    • Airflow (m3/h)/Delta P (Pa)

      1700 / 69

    • Energy consumption (kWh/year)*

      -

    • Energy class**

      -

  • ePM1 60% ISO 16890 - (F7)

    • RPV85-6SC

    • Base A (mm)

      592

    • Height B (mm)

      592

    • Depth C (mm)

      292

    • Surface (m2)

      18

    • Airflow (m3/h)/Delta P (Pa)

      3400 / 76

    • Energy consumption (kWh/year)*

      945

    • Energy class**

      A

    • RPV85-5SC

    • Base A (mm)

      592

    • Height B (mm)

      490

    • Depth C (mm)

      292

    • Surface (m2)

      15

    • Airflow (m3/h)/Delta P (Pa)

      2800 / 76

    • Energy consumption (kWh/year)*

      -

    • Energy class**

      -

    • RPV85-3SC

    • Base A (mm)

      592

    • Height B (mm)

      287

    • Depth C (mm)

      292

    • Surface (m2)

      9

    • Airflow (m3/h)/Delta P (Pa)

      1700 / 76

    • Energy consumption (kWh/year)*

      -

    • Energy class**

      -

  • ePM1 70% ISO 16890 - (F8)

    • RPV95-6SC

    • Base A (mm)

      592

    • Height B (mm)

      592

    • Depth C (mm)

      292

    • Surface (m2)

      18

    • Airflow (m3/h)/Delta P (Pa)

      3400 / 97

    • Energy consumption (kWh/year)*

      1437

    • Energy class**

      C

    • RPV95-5SC

    • Base A (mm)

      592

    • Height B (mm)

      490

    • Depth C (mm)

      292

    • Surface (m2)

      15

    • Airflow (m3/h)/Delta P (Pa)

      2800 / 97

    • Energy consumption (kWh/year)*

      -

    • Energy class**

      -

    • RPV95-3SC

    • Base A (mm)

      592

    • Height B (mm)

      287

    • Depth C (mm)

      292

    • Surface (m2)

      9

    • Airflow (m3/h)/Delta P (Pa)

      91700 / 87

    • Energy consumption (kWh/year)*

      -

    • Energy class**

      -

  • ePM1 85% ISO 16890 - (F9)

    • RPV98-6SC

    • Base A (mm)

      592

    • Height B (mm)

      592

    • Depth C (mm)

      292

    • Surface (m2)

      18

    • Airflow (m3/h)/Delta P (Pa)

      3400 / 118

    • Energy consumption (kWh/year)*

      1519

    • Energy class**

      C

    • RPV98-5SC

    • Base A (mm)

      592

    • Height B (mm)

      490

    • Depth C (mm)

      292

    • Surface (m2)

      15

    • Airflow (m3/h)/Delta P (Pa)

      2800 / 118

    • Energy consumption (kWh/year)*

      -

    • Energy class**

      -

    • RPV98-3SC

    • Base A (mm)

      592

    • Height B (mm)

      287

    • Depth C (mm)

      292

    • Surface (m2)

      9

    • Airflow (m3/h)/Delta P (Pa)

      1700 / 118

    • Energy consumption (kWh/year)*

      -

    • Energy class**

      -

* Energy consumption, kWh/year: calculated according to Eurovent Guideline 4/21-2018 | ** Energy class: according to Eurovent RS4/C/001-2019 | *** Energy class: according to Eurovent RS4/C/001-2015
